CBR 600 FS 00-02 Monocoque Carbon

Die All-in-one Lösung :

Sieht schick aus.
Superleicht : 1380 gr (manche Zubehör- Sitzbänke wiegen schon soviel, und sind noch nicht einmal selbsttragend )
Richtige Sitzhöhe zum schnellen Fahren : je nach Polster 80 - 83 cm.
Sehr schlankes Design insgesamt, jedoch noch schlanker im Bereich der Sitzfläche : so kann man sich gut auf dem Motorrad bewegen .
Sehr steif in den Anschraubpunkten  und Sitzfläche : garantiert endlich ein Gefühl dafür, was die Hinterhand macht .
Unterkontur bereits ausgeformt für Schalldämpfer , man kann die Krümmeranlage ins Heck verlegen ,durch :
- entweder Umbau orig. Schwinge
-oder indem man die neue 600RR Schwinge einbaut , passt nämlich.
Halter verfügbar , auf welchen man Battery, Regler, Starter-Relays und anderes Zeugs unterbringen kann .

Dieses Monocoque ist verfügbar , für Preise und Lieferzeiten  : T.Durbahn@gmx.com

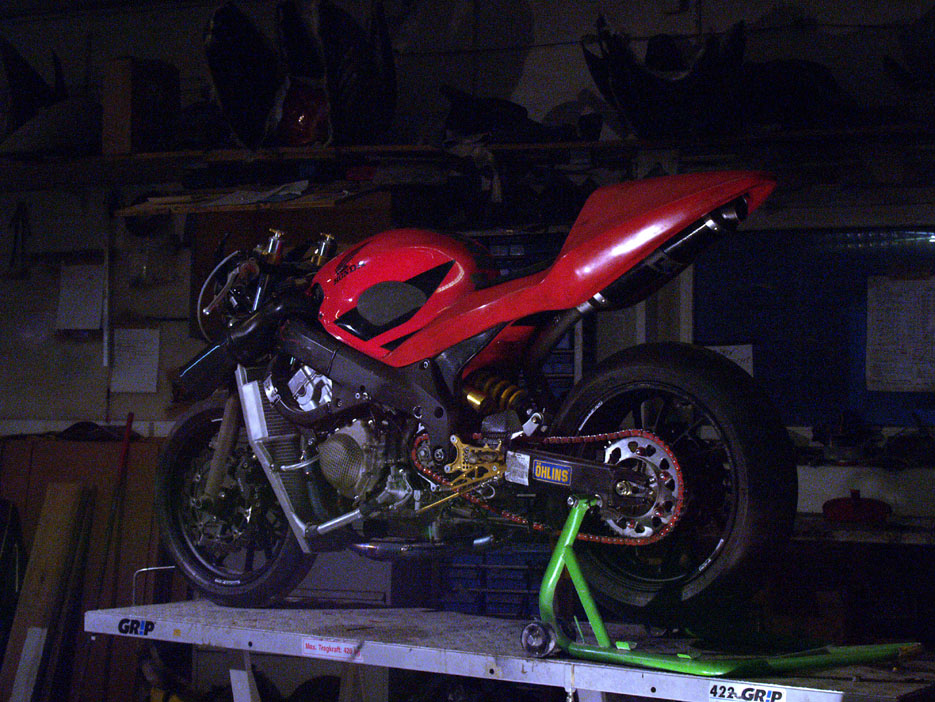

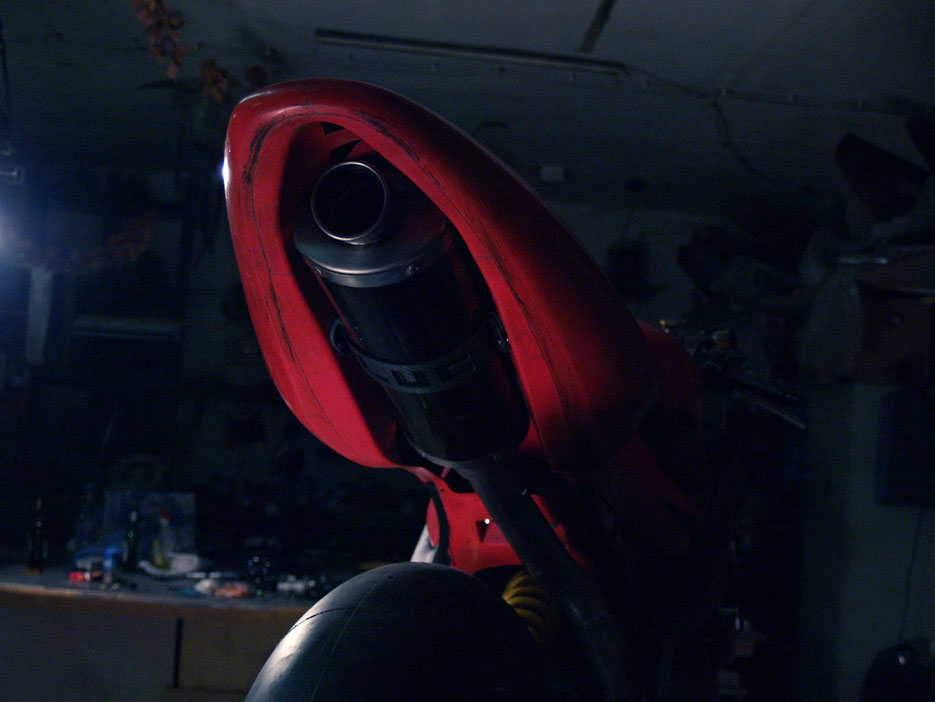

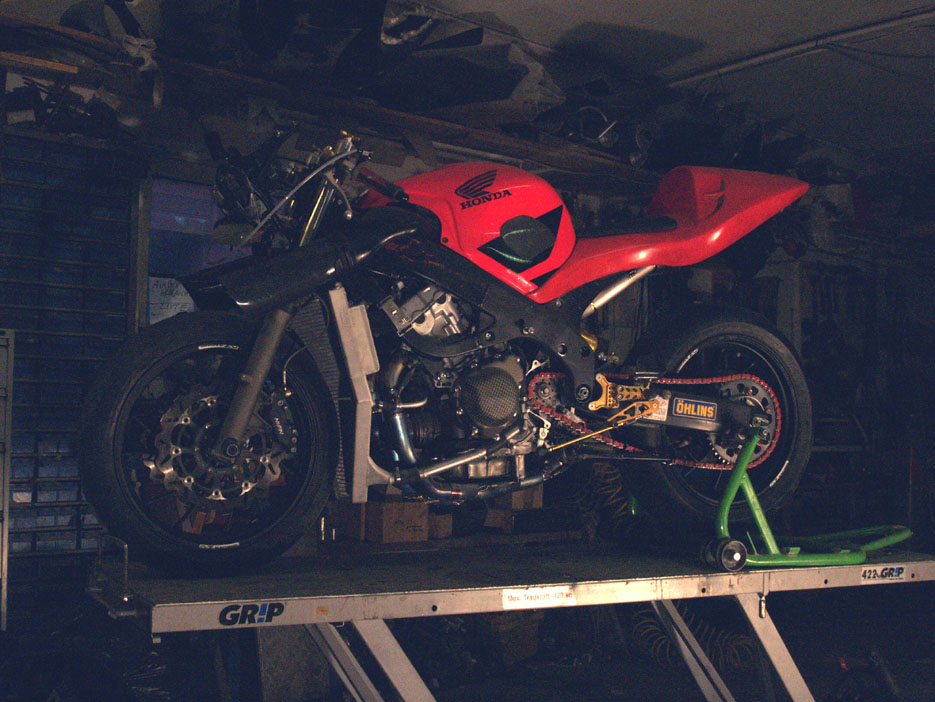

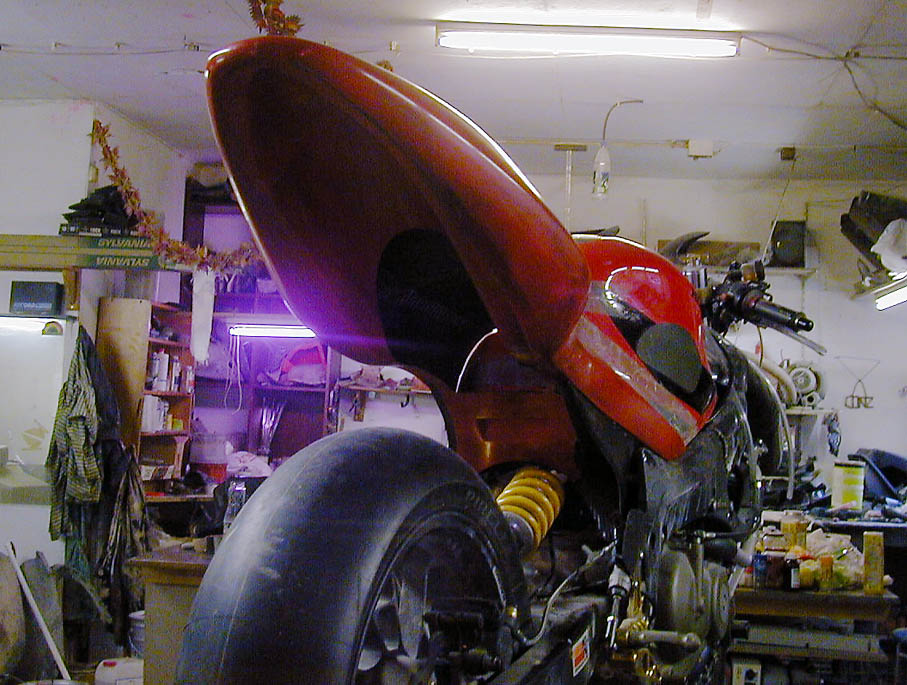

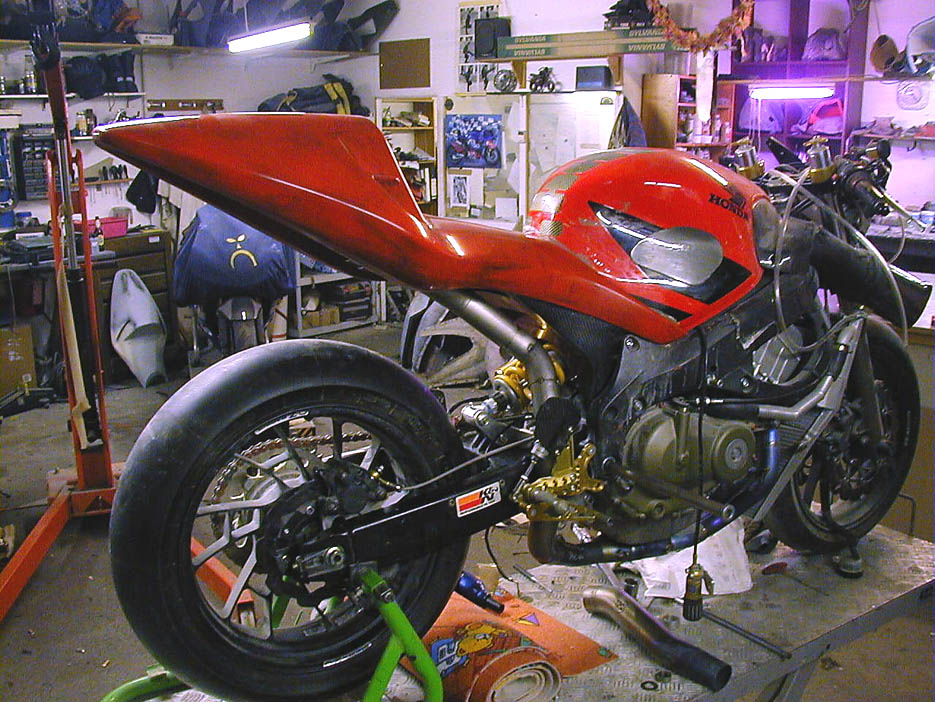

  PC35 Monocoque 1.jpg (155228 Byte)      PC35 Monocoque 91klein logo.jpg (184257 Byte)        PC35 Monocoque 2.jpg (197936 Byte)        PC35 Monocoque 4.jpg (174575 Byte)        PC35 Monocoque 6.jpg (224486 Byte)           PC35 Monocoque 7.jpg (115663 Byte)

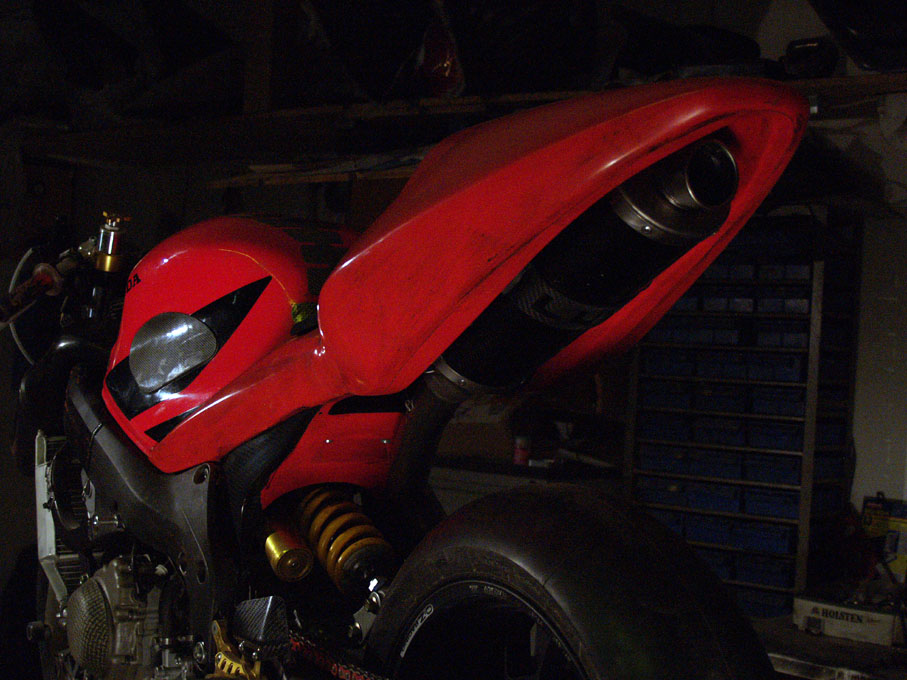

PC35 Monocoque 9.jpg (146574 Byte)

Good to see on this Picture ,the slim seat-area . Makes it easier to move around on the Bike, you reach the ground with your feet without necessaty to spread the legs....
                                     PC35 Monocoque A.jpg (124824 Byte)

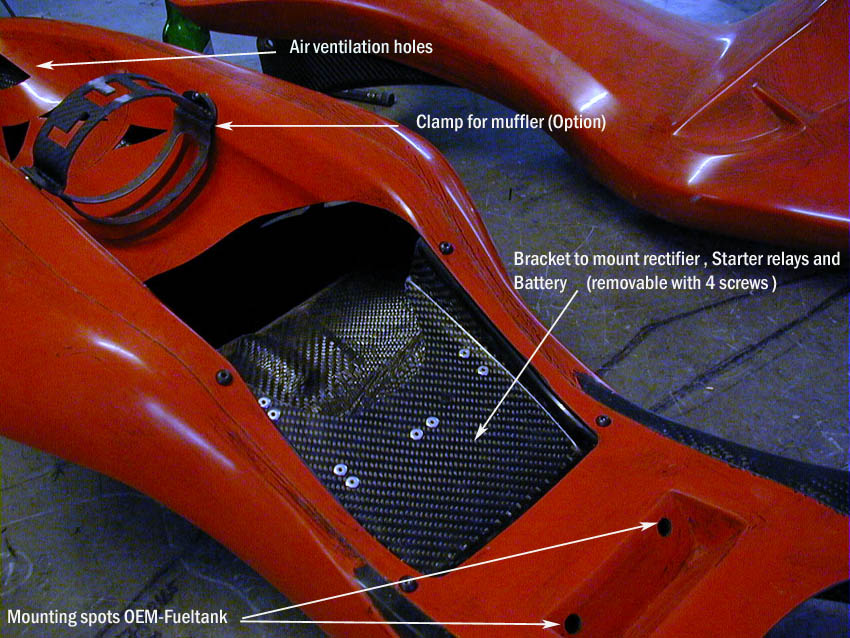

The explation Picture , Aiventilation, the bracket ,Fueltank mounting spot ,Clamp : PC35 Monocoque B explanation 1.jpg (149384 Byte)

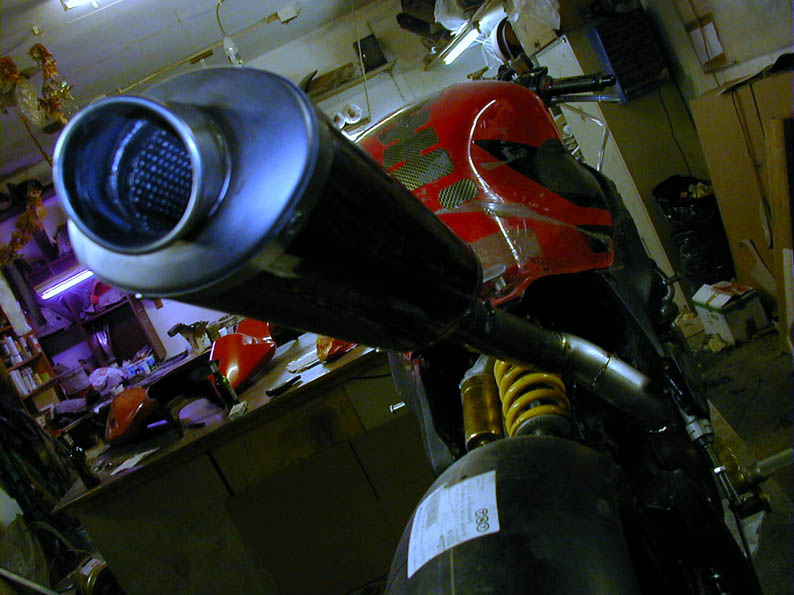

The Exhaust , solo:   PC35 Monocoque C.jpg (100136 Byte)

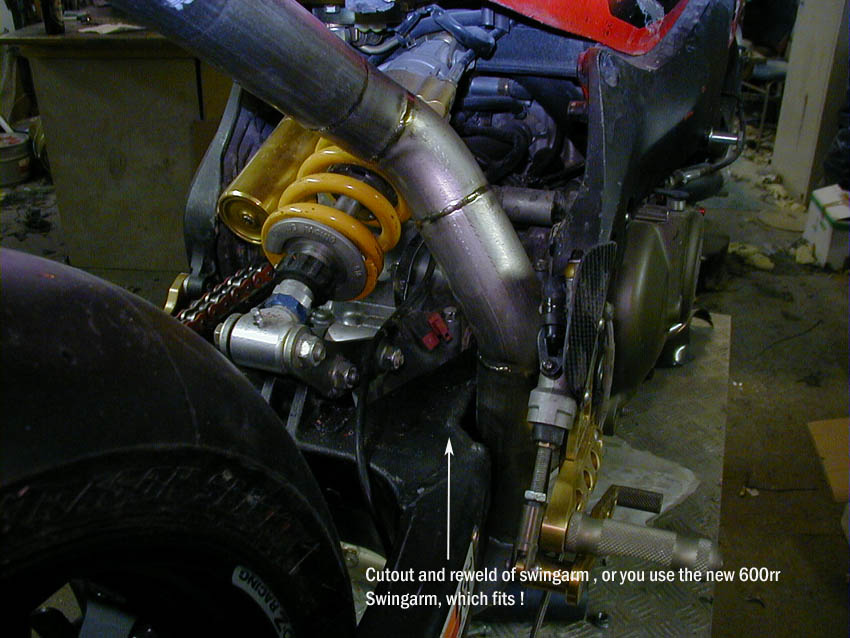

Here what I have done, was not so complicated as you might think , cutout swingarm and reweld ,for clearance PC35 Monocoque D Explanation.jpg (112115 Byte)

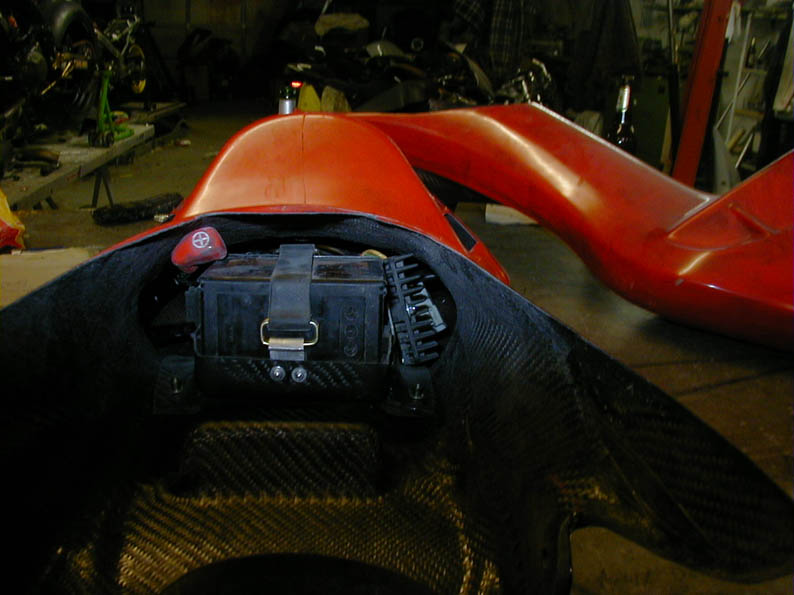

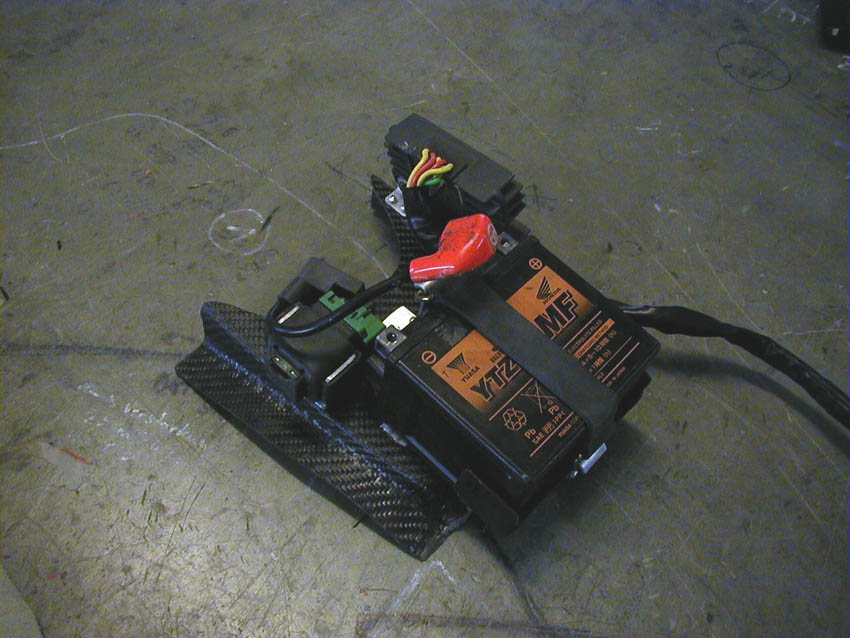

The inside hidden Carbon-Bracket  PC35 Monocoque E.jpg (79751 Byte)  .....the Bracket   PC35 Monocoque F - the Bracket.jpg (110030 Byte)
